ETI LS-Schalter ETIMAT P10 3-polig

Eigenschaften

- Bemessungs- Strombereich von 0.5 - 63 A
- Auslösecharakteristik: Ausführungen B, C, D & K
- Hohe Abschaltleistung Leitungsschutzschalter ETIMAT P10
- Grössere und stärkere Anschlussklemmen
- Neuer Schnappschieber; schnelle Montage und Demontage aus dem Verbund

Technische Daten

Anzahl der abgesicherten Pole
3
Bemessungsschaltvermögen Icn nach EN 60898 bei 230 V
10 kA
Bemessungsschaltvermögen Icn nach EN 60898 bei 400 V
10 kA
Bemessungsschaltvermögen Icu nach IEC 60947-2 bei 230 V
10 kA
Bemessungsschaltvermögen Icu nach IEC 60947-2 bei 400 V
10 kA
Spannungsart
AC
Frequenz
50 - 60 MHz
Mitschaltender Neutralleiter
Nein
Überspannungskategorie
3
Zusatzeinrichtungen möglich
Ja
Breite in Teilungseinheiten
3

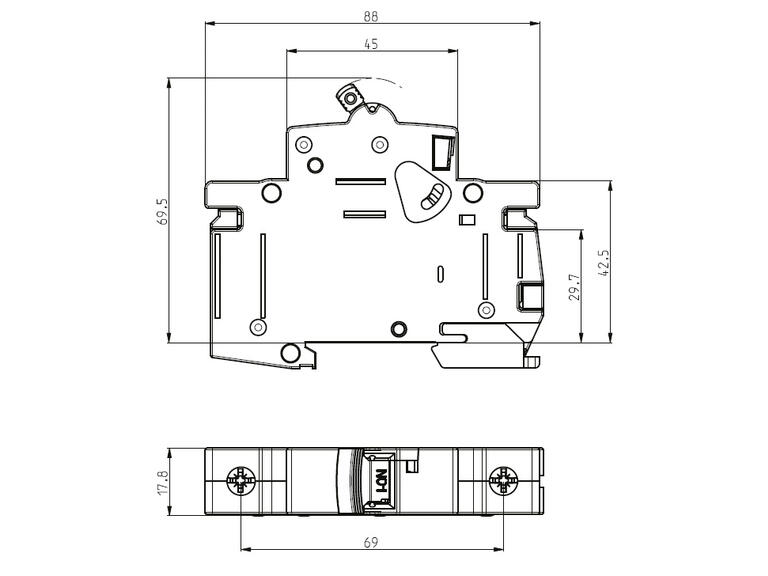

Einbautiefe
69.5 mm
Schutzart (IP)
IP20
Frequenz
50/60 Hz
Bemessungsspannung
230/400 V
Anschlüsse
25 mm²
Marke
ETI
Polzahl (gesamt)
3
Umgebungstemperatur
-25°C bis +55°C
Menge Art.Nr. Bezeichnung Lager EAN Auslösecharakteristik Bemessungsstrom VE Einheit
271030100 LS ETIMAT P10, B 10A, 3p, 10kA 3838895650089 B 10 A 1 Stk
271330109 LS ETIMAT P10, B 13A, 3p, 10kA 3838895650232 B 13 A 1 Stk
271630108 LS ETIMAT P10, B 16A, 3p, 10kA 3838895651727 B 16 A 1 Stk
272030101 LS ETIMAT P10, B 20A, 3p, 10kA 3838895651871 B 20 A 1 Stk
272530106 LS ETIMAT P10, B 25A, 3p, 10kA 3838895652021 B 25 A 1 Stk
273230108 LS ETIMAT P10, B 32A, 3p, 10kA 3838895652175 B 32 A 1 Stk
274030103 LS ETIMAT P10, B 40A, 3p, 10kA 3838895652335 B 40 A 1 Stk
275030104 LS ETIMAT P10, B 50A, 3p, 10kA 3838895652489 B 50 A 1 Stk
270630107 LS ETIMAT P10, B 6A, 3p, 10kA 3838895649908 B 6 A 1 Stk
276330104 LS ETIMAT P10, B 63A, 3p, 10kA 3838895652632 B 63 A 1 Stk
270531105 LS ETIMAT P10, C 0.5A,3p, 10kA 3838895653233 C 0,5 A 1 Stk
270131103 LS ETIMAT P10, C 1A,3p, 10kA 3838895652786 C 1 A 1 Stk
271031101 LS ETIMAT P10, C 10A,3p, 10kA 3838895653530 C 10 A 1 Stk
001901329 LS ETIMAT P10, C 13A,3p, 10kA 3838895925170 C 13 A 1 Stk
001901330 LS ETIMAT P10, C 16A,3p, 10kA C 16 A 1 Stk
270231106 LS ETIMAT P10, C 2A,3p, 10kA 3838895652939 C 2 A 1 Stk
272031102 LS ETIMAT P10, C 20A,3p, 10kA 3838895653981 C 20 A 1 Stk
272531107 LS ETIMAT P10, C 25A,3p, 10kA 3838895654131 C 25 A 1 Stk
273231109 LS ETIMAT P10, C 32A,3p, 10kA 3838895654285 C 32 A 1 Stk
270431102 LS ETIMAT P10, C 4A,3p, 10kA 3838895653080 C 4 A 1 Stk
274031104 LS ETIMAT P10, C 40A,3p, 10kA 3838895654438 C 40 A 1 Stk
275031105 LS ETIMAT P10, C 50A,3p, 10kA 3838895654582 C 50 A 1 Stk
270631108 LS ETIMAT P10, C 6A,3p, 10kA 3838895653387 C 6 A 1 Stk
276331105 LS ETIMAT P10, C 63A,3p, 10kA 3838895654735 C 63 A 1 Stk
270532106 LS ETIMAT P10, D 0.5A, 3p, 10kA 3838895655688 D 0,5 A 1 Stk
270132104 LS ETIMAT P10, D 1A, 3p, 10kA 3838895655060 D 1 A 1 Stk
271032102 LS ETIMAT P10, D 10A, 3p, 10kA 3838895655985 D 10 A 1 Stk
271332101 LS ETIMAT P10, D 13A, 3p, 10kA 3838895656135 D 13 A 1 Stk
271632100 LS ETIMAT P10, D 16A, 3p, 10kA 3838895656289 D 16 A 1 Stk
270232107 LS ETIMAT P10, D 2A, 3p, 10kA 3838895655381 D 2 A 1 Stk
272032103 LS ETIMAT P10, D 20A, 3p, 10kA 3838895656432 D 20 A 1 Stk
272532108 LS ETIMAT P10, D 25A, 3p, 10kA 3838895656586 D 25 A 1 Stk
273232100 LS ETIMAT P10, D 32A, 3p, 10kA 3838895656739 D 32 A 1 Stk
270432103 LS ETIMAT P10, D 4A, 3p, 10kA 3838895655534 D 4 A 1 Stk
270632109 LS ETIMAT P10, D 6A, 3p, 10kA 3838895655831 D 6 A 1 Stk
270533107 LS ETIMAT P10, K 0.5A, 3p, 10kA 3838895691068 K 0,5 A 1 Stk
270133105 LS ETIMAT P10, K 1A, 3p, 10kA 3838895690979 K 1 A 1 Stk
271033103 LS ETIMAT P10, K 10A, 3p, 10kA 3838895691129 K 10 A 1 Stk
271333102 LS ETIMAT P10, K 13A, 3p, 10kA 3838895691150 K 13 A 1 Stk
271633101 LS ETIMAT P10, K 16A, 3p, 10kA 3838895691181 K 16 A 1 Stk
270233108 LS ETIMAT P10, K 2A, 3p, 10kA 3838895691006 K 2 A 1 Stk
272033104 LS ETIMAT P10, K 20A, 3p, 10kA 3838895691211 K 20 A 1 Stk
272533109 LS ETIMAT P10, K 25A, 3p, 10kA 3838895691242 K 25 A 1 Stk
273233101 LS ETIMAT P10, K 32A, 3p, 10kA 3838895691273 K 32 A 1 Stk
270433104 LS ETIMAT P10, K 4A, 3p, 10kA 3838895691037 K 4 A 1 Stk
270633100 LS ETIMAT P10, K 6A, 3p, 10kA 3838895691099 K 6 A 1 Stk
Änderungen vorbehalten
