Winkelrohrkabelschuhe 90°, R-Serie

Eigenschaften

Rohrkabelschuh INTERCABLE Standard, nach UL-Ausführung, für mehrdrähtige, feindrähtige, verdichtete mehr- und feindrähtige Leiter, Werkstoff gemäss DIN EN 13600, Oberfläche galvanisch verzinnt

Zugelassen für den Bereich Wehr- und Kerntechnik

Technische Daten

Anschlusswinkel
90°
Flanschform
Ringform
Leiter-Klasse
verschiedene
Schmale Flanschausführung
Nein
Isoliert
Nein
Mit Sichtloch
Nein
Werkstoff
Kupfer
Oberflächenschutz
verzinnt
Anzahl der Befestigungslöcher
1
Marke
Intercable

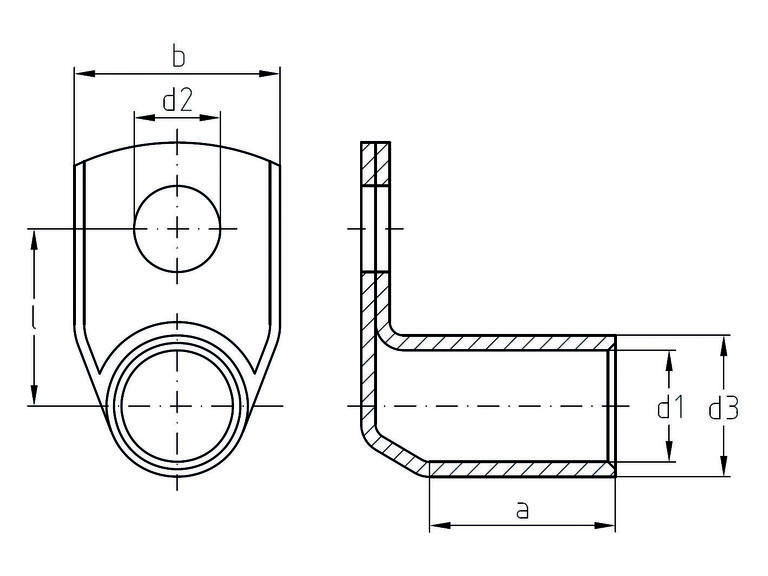

Menge Art.Nr. Bezeichnung E-Nummer Lager EAN Nennquerschnitt Anschlussgewindemaß (metrisch) d1 a b d2 d3 l VE Einheit
ICR6490 Winkel-Rohrkabelschuh 6mm2, M4 156360817 8014212193421 6 mm² 4 3.5 mm 8 mm 10 mm 4.3 mm 6.5 mm 10.3 mm 1 Stk
ICR6590 Winkel-Rohrkabelschuh 6mm2, M5 156360827 8014212193445 6 mm² 5 3.5 mm 8 mm 11 mm 5.3 mm 6.5 mm 11.3 mm 1 Stk
ICR6690 Winkel-Rohrkabelschuh 6mm2, M6 156360837 8014212193452 6 mm² 6 3.5 mm 8 mm 11 mm 6.4 mm 6.5 mm 13.3 mm 1 Stk
ICR6890 Winkel-Rohrkabelschuh 6mm2, M8 156360847 8014212193476 6 mm² 8 3.5 mm 8 mm 15 mm 8.4 mm 6.5 mm 15.3 mm 1 Stk
ICR61090 Winkel-Rohrkabelschuh 6mm2, M10 156360857 8014212195753 6 mm² 10 3.5 mm 8 mm 18 mm 10.5 mm 6.5 mm 17.3 mm 1 Stk
ICR61290 Winkel-Rohrkabelschuh 6mm2, M12 156360867 8014212195760 6 mm² 12 3.5 mm 8 mm 20 mm 133 mm 6.5 mm 18.3 mm 1 Stk
ICR10590 Winkel-Rohrkabelschuh 10mm2, M5 156361027 8014212191939 10 mm² 5 4.5 mm 9 mm 12 mm 5.3 mm 7 mm 11.5 mm 25 Stk
ICR10690 Winkel-Rohrkabelschuh 10mm2, M6 156361037 8014212191953 10 mm² 6 4.5 mm 9 mm 12 mm 6.4 mm 7 mm 12.5 mm 1 Stk
ICR10890 Winkel-Rohrkabelschuh 10mm2, M8 156361047 8014212191984 10 mm² 8 4.5 mm 9 mm 15 mm 8.4 mm 7 mm 15.5 mm 1 Stk
ICR101090 Winkel-Rohrkabelschuh 10mm2, M10 156361057 8014212191908 10 mm² 10 4.5 mm 9 mm 18 mm 10.5 mm 7 mm 17.5 mm 1 Stk
ICR101290 Winkel-Rohrkabelschuh 10mm2, M12 156361067 8014212191915 10 mm² 12 4.5 mm 9 mm 20 mm 13 mm 7 mm 18.5 mm 1 Stk
ICR16590 Winkel-Rohrkabelschuh 16mm2, M5 156361127 8014212192448 16 mm² 5 5.5 mm 12 mm 12 mm 5.3 mm 8.5 mm 13 mm 25 Stk
ICR16690 Winkel-Rohrkabelschuh 16mm2, M6 156361137 8014212192462 16 mm² 6 5.5 mm 12 mm 12 mm 6.4 mm 8.5 mm 14.3 mm 1 Stk
ICR16890 Winkel-Rohrkabelschuh 16mm2, M8 156361147 8014212192486 16 mm² 8 5.5 mm 12 mm 15 mm 8.4 mm 8.5 mm 16.3 mm 1 Stk
ICR161090 Winkel-Rohrkabelschuh 16mm2, M10 156361157 8014212192417 16 mm² 10 5.5 mm 12 mm 18 mm 10.5 mm 8.5 mm 18.3 mm 1 Stk
ICR161290 Winkel-Rohrkabelschuh 16mm2, M12 156361167 8014212192431 16 mm² 12 5.5 mm 12 mm 20 mm 13 mm 8.5 mm 19.3 mm 1 Stk
ICR25690 Winkel-Rohrkabelschuh 25mm2, M6 156361237 8014212192868 25 mm² 6 7 mm 14 mm 15 mm 6.4 mm 10 mm 15.5 mm 1 Stk
ICR25890 Winkel-Rohrkabelschuh 25mm2, M8 156361247 8014212192882 25 mm² 8 7 mm 14 mm 16 mm 8.4 mm 10 mm 17.5 mm 25 Stk
ICR251090 Winkel-Rohrkabelschuh 25mm2, M10 156361257 8014212192790 25 mm² 10 7 mm 14 mm 18 mm 10.5 mm 10 mm 19.5 mm 1 Stk
ICR251290 Winkel-Rohrkabelschuh 25mm2, M12 156361267 8014212192820 25 mm² 12 7 mm 14 mm 20 mm 13 mm 10 mm 20.5 mm 1 Stk
ICR251490 Winkel-Rohrkabelschuh 25mm2, M14 156361277 8014212192837 25 mm² 14 7 mm 14 mm 22 mm 15 mm 10 mm 22.5 mm 1 Stk
ICR35690 Winkel-Rohrkabelschuh 35mm2, M6 156361337 8014212193094 35 mm² 6 8.5 mm 16 mm 17 mm 6.4 mm 12 mm 16.5 mm 1 Stk
ICR35890 Winkel-Rohrkabelschuh 35mm2, M8 156361347 8014212193124 35 mm² 8 8.5 mm 16 mm 17 mm 8.4 mm 12 mm 18.5 mm 1 Stk
ICR351090 Winkel-Rohrkabelschuh 35mm2, M10 156361357 8014212193025 35 mm² 10 8.5 mm 16 mm 20 mm 10.5 mm 12 mm 20.5 mm 1 Stk
ICR351290 Winkel-Rohrkabelschuh 35mm2, M12 156361367 8014212193056 35 mm² 12 8.5 mm 16 mm 22 mm 13 mm 12 mm 21.5 mm 1 Stk
ICR351490 Winkel-Rohrkabelschuh 35mm2, M14 156361377 8014212193063 35 mm² 14 8.5 mm 16 mm 23 mm 15 mm 12 mm 23.5 mm 1 Stk
ICR351690 Winkel-Rohrkabelschuh 35mm2, M16 156361387 8014212193070 35 mm² 16 8.5 mm 16 mm 28 mm 17 mm 12 mm 24.5 mm 1 Stk
ICR50690 Winkel-Rohrkabelschuh 50mm2, M6 156361437 8014212193346 50 mm² 6 10 mm 18 mm 20 mm 6.4 mm 14 mm 17.5 mm 1 Stk
ICR50890 Winkel-Rohrkabelschuh 50mm2, M8 156361447 8014212193377 50 mm² 8 10 mm 18 mm 20 mm 8.4 mm 14 mm 19.5 mm 1 Stk
ICR501090 Winkel-Rohrkabelschuh 50mm2, M10 156361457 8014212193223 50 mm² 10 10 mm 18 mm 20 mm 10.5 mm 14 mm 21.5 mm 1 Stk
ICR501290 Winkel-Rohrkabelschuh 50mm2, M12 156361467 8014212193278 50 mm² 12 10 mm 18 mm 23 mm 13 mm 14 mm 22.5 mm 1 Stk
ICR501490 Winkel-Rohrkabelschuh 50mm2, M14 156361477 8014212193308 50 mm² 14 10 mm 18 mm 23 mm 15 mm 14 mm 24.5 mm 1 Stk
ICR501690 Winkel-Rohrkabelschuh 50mm2, M16 156361487 8014212193322 50 mm² 16 10 mm 18 mm 27 mm 17 mm 14 mm 28.5 mm 1 Stk
ICR502090 Winkel-Rohrkabelschuh 50mm2, M20 156361497 8014212195746 50 mm² 20 10 mm 18 mm 30 mm 21 mm 14 mm 32.5 mm 1 Stk
ICR70690 Winkel-Rohrkabelschuh 70mm2, M6 156361537 8014212193612 70 mm² 6 12 mm 20 mm 24 mm 6.4 mm 16.5 mm 18.8 mm 1 Stk
ICR70890 Winkel-Rohrkabelschuh 70mm2, M8 156361547 8014212193643 70 mm² 8 12 mm 20 mm 24 mm 8.4 mm 16.5 mm 20.8 mm 1 Stk
ICR701090 Winkel-Rohrkabelschuh 70mm2, M10 156361557 8014212193520 70 mm² 10 12 mm 20 mm 24 mm 10.5 mm 16.5 mm 22.8 mm 1 Stk
ICR701290 Winkel-Rohrkabelschuh 70mm2, M12 156361567 8014212193568 70 mm² 12 12 mm 20 mm 24 mm 13 mm 16.5 mm 23.8 mm 1 Stk
ICR701490 Winkel-Rohrkabelschuh 70mm2, M14 156361577 8014212193582 70 mm² 14 12 mm 20 mm 25 mm 15 mm 16.5 mm 25.8 mm 1 Stk
ICR701690 Winkel-Rohrkabelschuh 70mm2, M16 156361587 8014212193599 70 mm² 16 12 mm 20 mm 28 mm 17 mm 16.5 mm 26.8 mm 1 Stk
ICR702090 Winkel-Rohrkabelschuh 70mm2, M20 156361597 8014212193605 70 mm² 20 12 mm 20 mm 29 mm 21 mm 16.5 mm 30.8 mm 1 Stk
ICR95890 Winkel-Rohrkabelschuh 95mm2, M8 156361647 8014212193865 95 mm² 8 13.5 mm 22 mm 26 mm 8.4 mm 18 mm 21.5 mm 1 Stk
ICR951090 Winkel-Rohrkabelschuh 95mm2, M10 156361657 8014212193711 95 mm² 10 13.5 mm 22 mm 26 mm 10.5 mm 18 mm 23.5 mm 1 Stk
ICR951290 Winkel-Rohrkabelschuh 95mm2, M12 156361667 8014212193766 95 mm² 12 13.5 mm 22 mm 26 mm 13 mm 18 mm 24.5 mm 1 Stk
ICR951490 Winkel-Rohrkabelschuh 95mm2, M14 156361677 8014212193803 95 mm² 14 13.5 mm 22 mm 26 mm 15 mm 18 mm 26.5 mm 1 Stk
ICR951690 Winkel-Rohrkabelschuh 95mm2, M16 156361687 8014212193827 95 mm² 16 13.5 mm 22 mm 28 mm 17 mm 18 mm 27.5 mm 1 Stk
ICR120890 Winkel-Rohrkabelschuh 120mm2, M8 156362047 8014212192202 120 mm² 8 15 mm 25 mm 29 mm 8.4 mm 20 mm 22.5 mm 1 Stk
ICR1201090 Winkel-Rohrkabelschuh 120mm2, M10 156362057 8014212192042 120 mm² 10 15 mm 25 mm 29 mm 10.5 mm 20 mm 24.5 mm 1 Stk
ICR1201290 Winkel-Rohrkabelschuh 120mm2, M12 156362067 8014212192097 120 mm² 12 15 mm 25 mm 29 mm 13 mm 20 mm 25.5 mm 1 Stk
ICR1201690 Winkel-Rohrkabelschuh 120mm2, M16 156362087 8014212192158 120 mm² 16 15 mm 25 mm 30 mm 17 mm 20 mm 28.5 mm 1 Stk
ICR150890 Winkel-Rohrkabelschuh 150mm2, M8 156362147 8014212192363 150 mm² 8 16.8 mm 28 mm 31 mm 8.4 mm 21.3 mm 25.7 mm 1 Stk
ICR1501090 Winkel-Rohrkabelschuh 150mm2, M10 156362157 8014212192264 150 mm² 10 16.8 mm 28 mm 31 mm 10.5 mm 21.3 mm 25.7 mm 1 Stk
ICR1501290 Winkel-Rohrkabelschuh 150mm2, M12 156362167 8014212192295 150 mm² 12 16.8 mm 28 mm 31 mm 13 mm 21.3 mm 26.7 mm 1 Stk
ICR1501690 Winkel-Rohrkabelschuh 150mm2, M16 156362187 8014212192332 150 mm² 16 16.8 mm 28 mm 31 mm 17 mm 21.3 mm 29.7 mm 1 Stk
ICR1502090 Winkel-Rohrkabelschuh 150mm2, M20 156362197 8014212192349 150 mm² 20 16.8 mm 28 mm 35 mm 21 mm 21.3 mm 33.7 mm 1 Stk
ICR1851090 Winkel-Rohrkabelschuh 185mm2, M10 156362257 8014212192530 185 mm² 10 19 mm 29 mm 35 mm 10.5 mm 24 mm 27 mm 1 Stk
ICR1851290 Winkel-Rohrkabelschuh 185mm2, M12 156362267 8014212192561 185 mm² 12 19 mm 29 mm 35 mm 13 mm 24 mm 28 mm 1 Stk
ICR1851690 Winkel-Rohrkabelschuh 185mm2, M16 156362287 8014212192592 185 mm² 16 19 mm 29 mm 35 mm 17 mm 24 mm 31 mm 1 Stk
ICR1852090 Winkel-Rohrkabelschuh 185mm2, M20 156362297 8014212188809 185 mm² 20 19 mm 29 mm 35 mm 21 mm 24 mm 35 mm 1 Stk
ICR2401090 Winkel-Rohrkabelschuh 240mm2, M10 156362457 8014212192646 240 mm² 10 21 mm 34 mm 38 mm 10.5 mm 26 mm 28 mm 1 Stk
ICR2401290 Winkel-Rohrkabelschuh 240mm2, M12 156362467 8014212192677 240 mm² 12 21 mm 34 mm 38 mm 13 mm 26 mm 29 mm 1 Stk
ICR2401690 Winkel-Rohrkabelschuh 240mm2, M16 156362487 8014212192714 240 mm² 16 21 mm 34 mm 38 mm 17 mm 26 mm 32 mm 1 Stk
ICR2402090 Winkel-Rohrkabelschuh 240mm2, M20 156362497 8014212192752 240 mm² 20 21 mm 34 mm 38 mm 21 mm 26 mm 36 mm 1 Stk
ICR3001290 Winkel-Rohrkabelschuh 300mm2, M12 156362667 8014212192936 300 mm² 12 24 mm 41 mm 43 mm 13 mm 30 mm 31 mm 1 Stk
ICR3001690 Winkel-Rohrkabelschuh 300mm2, M16 156362687 8014212192967 300 mm² 16 24 mm 41 mm 43 mm 17 mm 30 mm 34 mm 1 Stk
ICR3002090 Winkel-Rohrkabelschuh 300mm2, M20 156362697 8014212192981 300 mm² 20 24 mm 41 mm 43 mm 21 mm 30 mm 38 mm 1 Stk
