Cosses à sertir selon DIN 46235, Cu 6 - 1000 mm2

Propriétés

Exécution DIN 46235

- en composant le code de l'outil de cartographie unique
- pour les conducteurs multibrins, par example VDE 0295 classe 2
- pour certains conducteurs sectoriels mis en forme (rond)
- sans trou d'inspection
- section totale: 6 - 1000mm²

Matériel:
- Cu selon EN 13600

Surface:
- étamée par électrolyse

Information:
- livrable aussi en exécution brut, référence avec "bk" en fin

Non approuvé pour le domaine de la défense et de la technologie nucléaire

Spécifications techniques

angle de raccordement
180° (horizontal)
nombre de trous de montage
1
surface
étamé
marque
KLAUKE

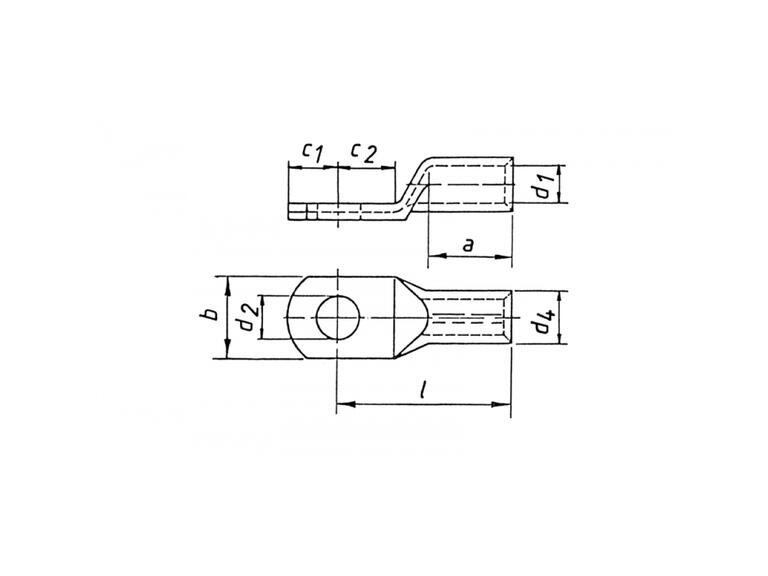

Quantité Réf. Bezeichnung No. E Stock EAN section nominale mesure de filetage (métrique) indice d1 a b d2 d4 c1 c2 Longueur UV Unité
101R5 Klauke DIN Cosses tubulaires 156340822 4012078010849 6 mm² 5 5 3.8 mm 10 mm 8.5 mm 5.3 mm 5.5 mm 6.5 mm 7.5 mm 24 mm 1 pcs
101R6 Klauke DIN Cosses tubulaires 156340832 4012078010856 6 mm² 6 5 3.8 mm 10 mm 8.5 mm 6.4 mm 5.5 mm 7.5 mm 8 mm 24 mm 1 pcs
101R8 Klauke DIN Cosses tubulaires 4012078010863 6 mm² 8 5 3.8 mm 10 mm 13 mm 8.4 mm 5.5 mm 10 mm 10 mm 24 mm 1 pcs
102R5 Klauke DIN Cosses tubulaires 156341022 4012078010870 10 mm² 5 6 4.5 mm 10 mm 9 mm 5.3 mm 6 mm 7 mm 8.5 mm 27 mm 1 pcs
102R6 Klauke DIN Cosses tubulaires 156341032 4012078010887 10 mm² 6 6 4.5 mm 10 mm 9 mm 6.4 mm 6 mm 7.5 mm 8.5 mm 27 mm 1 pcs
102R8 Klauke DIN Cosses tubulaires 156341042 4012078010894 10 mm² 8 6 4.5 mm 10 mm 13 mm 8.4 mm 6 mm 10 mm 10 mm 27 mm 1 pcs
103R6 Klauke DIN Cosses tubulaires 156341132 4012078010900 16 mm² 6 8 5.5 mm 20 mm 13 mm 6.4 mm 8.5 mm 7.5 mm 8 mm 36 mm 1 pcs
103R8 Klauke DIN Cosses tubulaires 156341142 4012078010917 16 mm² 8 8 5.5 mm 20 mm 13 mm 8.4 mm 8.5 mm 10 mm 10 mm 36 mm 1 pcs
103R10 Klauke DIN Cosses tubulaires 156341152 4012078010924 16 mm² 10 8 5.5 mm 20 mm 17 mm 10.5 mm 8.5 mm 12 mm 12 mm 36 mm 1 pcs
103R12 Klauke DIN Cosses tubulaires 156341162 4012078010931 16 mm² 12 8 5.5 mm 20 mm 18 mm 13 mm 8.5 mm 13 mm 13 mm 36 mm 1 pcs
104R6 Klauke DIN Cosses tubulaires 156341232 4012078426978 25 mm² 6 10 7 mm 20 mm 14 mm 6.4 mm 10 mm 7.5 mm 8 mm 38 mm 1 pcs
104R8 Klauke DIN Cosses tubulaires 156341242 4012078420167 25 mm² 8 10 7 mm 20 mm 16 mm 8.4 mm 10 mm 10 mm 10 mm 38 mm 1 pcs
104R10 Klauke DIN Cosses tubulaires 156341252 4012078420174 25 mm² 10 10 7 mm 20 mm 17 mm 10.5 mm 10 mm 12 mm 12 mm 38 mm 1 pcs
104R12 Klauke DIN Cosses tubulaires 156341262 4012078471039 25 mm² 12 10 7 mm 20 mm 19 mm 13 mm 10 mm 13 mm 13 mm 38 mm 1 pcs
105R6 Klauke DIN Cosses tubulaires 4012078471091 35 mm² 6 12 8.2 mm 20 mm 17 mm 6.4 mm 12.5 mm 7.5 mm 8 mm 42 mm 1 pcs
105R8 Klauke DIN Cosses tubulaires 156341342 4012078463836 35 mm² 8 12 8.2 mm 20 mm 17 mm 8.4 mm 12.5 mm 10 mm 10 mm 42 mm 1 pcs
105R10 Klauke DIN Cosses tubulaires 156341352 4012078419093 35 mm² 10 12 8.2 mm 20 mm 19 mm 10.5 mm 12.5 mm 12 mm 12 mm 42 mm 1 pcs
105R12 Klauke DIN Cosses tubulaires 156341362 4012078424417 35 mm² 12 12 8.2 mm 20 mm 21 mm 13 mm 12.5 mm 13 mm 13 mm 42 mm 1 pcs
105R14 Klauke DIN Cosses tubulaires 156341372 4012078471077 35 mm² 14 12 8.2 mm 20 mm 21 mm 15 mm 12.5 mm 14.5 mm 14.5 mm 42 mm 1 pcs
106R8 Klauke DIN Cosses tubulaires 156341442 4012078444439 50 mm² 8 14 10 mm 28 mm 20 mm 8.4 mm 14.5 mm 10 mm 10 mm 52 mm 1 pcs
106R10 Klauke DIN Cosses tubulaires 156341452 4012078419109 50 mm² 10 14 10 mm 28 mm 22 mm 10.5 mm 14.5 mm 12 mm 12 mm 52 mm 1 pcs
106R12 Klauke DIN Cosses tubulaires 156341462 4012078465663 50 mm² 12 14 10 mm 28 mm 24 mm 13 mm 14.5 mm 13 mm 13 mm 52 mm 1 pcs
106R14 Klauke DIN Cosses tubulaires 156341472 4012078471138 50 mm² 14 14 10 mm 28 mm 24 mm 15 mm 14.5 mm 14.5 mm 14.5 mm 52 mm 1 pcs
106R16 Klauke DIN Cosses tubulaires 156341482 4012078463577 50 mm² 16 14 10 mm 28 mm 28 mm 170 mm 14.5 mm 16 mm 16 mm 52 mm 1 pcs
107R8 Klauke DIN Cosses tubulaires 156341542 4012078011082 70 mm² 8 16 11.5 mm 28 mm 24 mm 8.4 mm 16.5 mm 10 mm 10 mm 55 mm 1 pcs
107R10 Klauke DIN Cosses tubulaires 156341552 4012078011099 70 mm² 10 16 11.5 mm 28 mm 24 mm 10.5 mm 16.5 mm 12 mm 12 mm 55 mm 1 pcs
107R12 Klauke DIN Cosses tubulaires 156341562 4012078011105 70 mm² 12 16 11.5 mm 28 mm 24 mm 13 mm 16.5 mm 13 mm 13 mm 55 mm 1 pcs
107R14 Klauke DIN Cosses tubulaires 156341572 4012078471169 70 mm² 14 16 11.5 mm 28 mm 24 mm 15 mm 16.5 mm 14.5 mm 14.5 mm 55 mm 1 pcs
107R16 Klauke DIN Cosses tubulaires 156341582 4012078463768 70 mm² 16 16 11.5 mm 28 mm 30 mm 17 mm 16.5 mm 16 mm 16 mm 55 mm 1 pcs
108R8 Klauke DIN Cosses tubulaires 4012078465694 95 mm² 8 18 13.5 mm 35 mm 28 mm 8.4 mm 19 mm 12 mm 12 mm 65 mm 1 pcs
108R10 Klauke DIN Cosses tubulaires 156341652 4012078011143 95 mm² 10 18 13.5 mm 35 mm 28 mm 10.5 mm 19 mm 12 mm 12 mm 65 mm 1 pcs
108R12 Klauke DIN Cosses tubulaires 156341662 4012078011150 95 mm² 12 18 13.5 mm 35 mm 28 mm 13 mm 19 mm 13 mm 13 mm 65 mm 1 pcs
108R14 Klauke DIN Cosses tubulaires 156341672 4012078471190 95 mm² 14 18 13.5 mm 35 mm 28 mm 15 mm 19 mm 14.5 mm 14.5 mm 65 mm 1 pcs
108R16 Klauke DIN Cosses tubulaires 156341682 4012078011174 95 mm² 16 18 13.5 mm 35 mm 32 mm 17 mm 19 mm 16 mm 16 mm 65 mm 1 pcs
109R10 Klauke DIN Cosses tubulaires 156342052 4012078011181 120 mm² 10 20 15.5 mm 35 mm 32 mm 10.5 mm 21 mm 15 mm 16 mm 70 mm 1 pcs
109R12 Klauke DIN Cosses tubulaires 156342062 4012078011198 120 mm² 12 20 15.5 mm 35 mm 32 mm 13 mm 21 mm 16 mm 17 mm 70 mm 1 pcs
109R14 Klauke DIN Cosses tubulaires 156342072 4012078471237 120 mm² 14 20 15.5 mm 35 mm 32 mm 15 mm 21 mm 18 mm 19 mm 70 mm 1 pcs
109R16 Klauke DIN Cosses tubulaires 156342082 4012078011211 120 mm² 16 20 15.5 mm 35 mm 32 mm 17 mm 21 mm 19 mm 20 mm 70 mm 1 pcs
109R20 Klauke DIN Cosses tubulaires 156342092 4012078471251 120 mm² 20 20 15.5 mm 35 mm 38 mm 21 mm 21 mm 21 mm 22 mm 70 mm 1 pcs
110R10 Klauke DIN Cosses tubulaires 156342152 4012078471275 150 mm² 10 22 17 mm 35 mm 34 mm 10.5 mm 23.5 mm 15 mm 16 mm 78 mm 1 pcs
110R12 Klauke DIN Cosses tubulaires 156342162 4012078011242 150 mm² 12 22 17 mm 35 mm 34 mm 13 mm 23.5 mm 16 mm 17 mm 78 mm 1 pcs
110R14 Klauke DIN Cosses tubulaires 156342172 4012078462679 150 mm² 14 22 17 mm 35 mm 34 mm 15 mm 23.5 mm 19 mm 20 mm 78 mm 1 pcs
110R16 Klauke DIN Cosses tubulaires 156342182 4012078462655 150 mm² 16 22 17 mm 35 mm 34 mm 17 mm 23.5 mm 19 mm 20 mm 78 mm 1 pcs
110R20 Klauke DIN Cosses tubulaires 156342192 4012078471305 150 mm² 20 22 17 mm 35 mm 40 mm 21 mm 23.5 mm 21 mm 22 mm 78 mm 1 pcs
111R10 Klauke DIN Cosses tubulaires 156342252 4012078465724 185 mm² 10 25 19 mm 40 mm 37 mm 10.5 mm 25.5 mm 15 mm 16 mm 82 mm 1 pcs
111R12 Klauke DIN Cosses tubulaires 156342262 4012078465847 185 mm² 12 25 19 mm 40 mm 37 mm 13 mm 25.5 mm 16 mm 17 mm 82 mm 1 pcs
111R14 Klauke DIN Cosses tubulaires 156342272 4012078471336 185 mm² 14 25 19 mm 40 mm 37 mm 15 mm 25.5 mm 19 mm 20 mm 82 mm 1 pcs
111R16 Klauke DIN Cosses tubulaires 156342282 4012078011310 185 mm² 16 25 19 mm 40 mm 37 mm 17 mm 25.5 mm 19 mm 20 mm 82 mm 1 pcs
111R20 Klauke DIN Cosses tubulaires 156342292 4012078471350 185 mm² 20 25 19 mm 40 mm 40 mm 21 mm 25.5 mm 21 mm 22 mm 82 mm 1 pcs
112R12 Klauke DIN cosses tubulaires 156342462 4012078464215 240 mm² 12 28 21.5 mm 40 mm 42 mm 13 mm 29 mm 16 mm 17 mm 92 mm 1 pcs
112R14 Klauke DIN cosses tubulaires 156342472 4012078467155 240 mm² 14 28 21.5 mm 40 mm 42 mm 15 mm 29 mm 19 mm 20 mm 92 mm 1 pcs
112R16 Klauke DIN cosses tubulaires 156342482 4012078011358 240 mm² 16 28 21.5 mm 40 mm 42 mm 17 mm 29 mm 19 mm 20 mm 92 mm 1 pcs
112R20 Klauke DIN cosses tubulaires 156342492 4012078461511 240 mm² 20 28 21.5 mm 40 mm 45 mm 21 mm 29 mm 21 mm 22 mm 92 mm 1 pcs
113R14 Klauke DIN cosses tubulaires 156342672 4012078471404 300 mm² 14 32 24.5 mm 50 mm 46 mm 15 mm 32 mm 19 mm 22 mm 100 mm 1 pcs
113R16 Klauke DIN cosses tubulaires 156342682 4012078464246 300 mm² 16 32 24.5 mm 50 mm 46 mm 17 mm 32 mm 19 mm 22 mm 100 mm 1 pcs
113R20 Klauke DIN cosses tubulaires 156342692 4012078463164 300 mm² 20 32 24.5 mm 50 mm 46 mm 21 mm 32 mm 22 mm 22 mm 100 mm 1 pcs
114R14 Klauke DIN cosses tubulaires 156342972 4012078471442 400 mm² 14 38 27.5 mm 70 mm 54 mm 15 mm 38.5 mm 25 mm 25 mm 115 mm 1 pcs
114R16 Klauke DIN cosses tubulaires 156342982 4012078471466 400 mm² 16 38 27.5 mm 70 mm 54 mm 17 mm 38.5 mm 25 mm 25 mm 115 mm 1 pcs
114R20 Klauke DIN cosses tubulaires 156342992 4012078464253 400 mm² 20 38 27.5 mm 70 mm 54 mm 21 mm 38.5 mm 25 mm 25 mm 115 mm 1 pcs
115R16 Klauke DIN cosses tubulaires 156343382 4012078056328 500 mm² 16 42 31 mm 70 mm 60 mm 17 mm 42 mm 25 mm 25 mm 125 mm 1 pcs
115R20 Klauke DIN cosses tubulaires 156343399 4012078056335 500 mm² 20 42 31 mm 70 mm 60 mm 21 mm 42 mm 25 mm 25 mm 125 mm 1 pcs
116R16 Klauke DIN cosses tubulaires 156343589 4012078056342 625 mm² 16 44 34.5 mm 80 mm 64 mm 17 mm 44 mm 25 mm 25 mm 135 mm 1 pcs
116R20 Klauke DIN cosses tubulaires 156343599 4012078056359 625 mm² 20 44 34.5 mm 80 mm 64 mm 21 mm 44 mm 25 mm 25 mm 135 mm 1 pcs
117R16 Klauke DIN cosses tubulaires 156343689 4012078056366 800 mm² 16 52 40 mm 100 mm 75 mm 17 mm 52 mm 30 mm 30 mm 165 mm 1 pcs
117R20 Klauke DIN cosses tubulaires 156343699 4012078056373 800 mm² 20 52 40 mm 100 mm 75 mm 21 mm 52 mm 30 mm 30 mm 165 mm 1 pcs
118R16 Klauke DIN cosses tubulaires 156343789 4012078056380 1000 mm² 16 58 44 mm 100 mm 83 mm 17 mm 58 mm 30 mm 30 mm 165 mm 1 pcs
118R20 Klauke DIN cosses tubulaires 156343799 4012078056397 1000 mm² 20 58 44 mm 100 mm 83 mm 21 mm 58 mm 30 mm 30 mm 165 mm 1 pcs
